Smart Lithium-Ion Battery System
UPS/HVDC Lithium Battery Systems and Commercial & Industrial Energy Storage Cabinets: A Comprehensive Solution Offering High Reliability, Long Lifespan, and Smart Intelligence
Data Center & Critical Power Backup Solutions
Next-generation LiFePO4 UPS power system replacing traditional lead-acid batteries. Reduces volume by 60%, weight by 70%, and extends lifespan by 3-5 times.
XB-24PH Series
2 4V LiFePO4 battery cell, designed for small to medium power UPS and HVDC applications
Core Parameters
- Rated Voltage: 25.6V (8 in series)
- Capacity range: 50Ah - 200Ah
- Energy Density: ≥180Wh/kg
- Cycle life: ≥3000 cycles @ 80% DOD
- Operating Temperature: Charging 0~55°C, Discharging -20~55°C
- Ingress Protection: IP54
Typical Application Areas
XB-64PH Series
64V LiFePO₄ battery cell for medium-to-high power UPS and HVDC power systems
Core Parameters
- Rated Voltage: 67.2V (21 cells in series)
- Capacity range: 50Ah - 300Ah
- Energy Density: ≥185Wh/kg
- Cycle life: ≥3500 cycles @ 80% DOD
- Operating Temperature: Charging 0~55°C, Discharging -20~55°C
- Supports parallel expansion: up to 16 units in parallel
Typical Application Areas
XB-48PL Series
48V long-life LiFePO4 battery cell, customized for the communication and power industries
Core Parameters
- Rated Voltage: 51.2V (16 cells in series)
- Capacity range: 100Ah - 500Ah
- Energy Density: ≥175Wh/kg
- Cycle life: ≥4000 cycles @ 80% DOD
- Design life: 10-15 years
- Smart BMS: Remote Monitoring and OTA Updates
Typical Application Areas
XB-64PL Series
64V long-life LiFePO4 battery cell with high-reliability design
Core Parameters
- Rated Voltage: 67.2V (21 cells in series)
- Capacity range: 100Ah - 400Ah
- Energy Density: ≥180Wh/kg
- Cycle life: ≥4000 cycles @ 80% DOD
- Operating Temperature: Charging 0~55°C, Discharging -30~55°C
- Multiple Safety Protections: Overcharge, Over-discharge, Overcurrent, Short Circuit, and High-Temperature Protection
Typical Application Areas
XB-96MH Series
9 6V LiFePO4 battery cell with flexible configuration and expandability
Core Parameters
- Rated Voltage: 102.4V (32 in series)
- Capacity range: 100Ah - 500Ah
- Energy Density: ≥190Wh/kg
- Cycle life: ≥4500 cycles @ 80% DOD
- Modular design: supports hot-swappable maintenance
- Smart Balancing: Active balancing technology for improved consistency
Typical Application Areas
Product Line Overview
The images above are free matches. For more precise and beautiful visuals, generate or edit them in the Creative Center's Image Studio, or upload your own.
Peak Shaving & Valley Filling · Demand Management · Integrated Solar-Storage
Integrated energy storage solutions for commercial and industrial users, supporting peak-valley arbitrage, demand management, dynamic capacity expansion, and emergency backup power across multiple application scenarios.

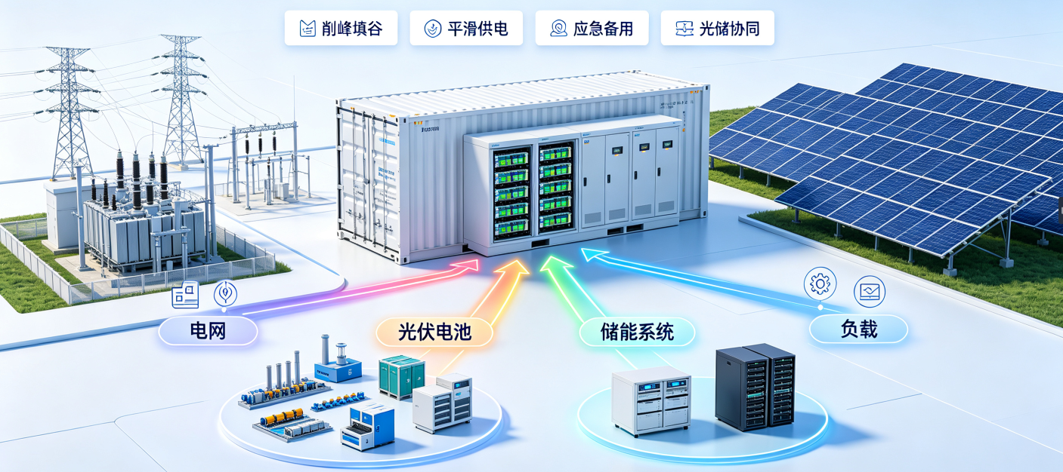

Typical Application Topology Diagram
Grid connection
Energy Storage Cabinet
Load Device
Energy Management
Smart-215 Series
215kWh Commercial & Industrial Energy Storage Cabinet: Integrated design, plug-and-play
Technical Specifications
Core Features
- Integrated Solution: Battery Container + PCS + BMS + EMS + Fire Protection + Thermal Management
- Smart Liquid Cooling: Precision temperature control with cell temperature difference ≤ 3°C
- Multi-level protection: Dual safeguarding with pack-level and module-level fire suppression
- Flexible Deployment: Outdoor installation, no dedicated server room required
Smart-261 Series
261kWh High-capacity commercial and industrial energy storage cabinet with higher energy density
Technical Specifications
Core Features
- High energy density: 261kWh/ cabinet, smaller footprint
- Intelligent Air Cooling: High-efficiency cooling system with lower energy consumption
- Cloud Management: Remote monitoring and operations support
- Grid-friendly: Supports low-voltage ride-through and frequency/voltage regulation
Use Cases
Data Center
UPS Backup Power
communication base station
HVDC Power Supply System
Industrial and Commercial Park
Peak shaving and valley filling energy storage
Microgrid System
Integrated Solar & Storage
Need an intelligent lithium battery system solution?
We provide complete solutions ranging from product selection and system design to installation, commissioning, and operations & maintenance.
